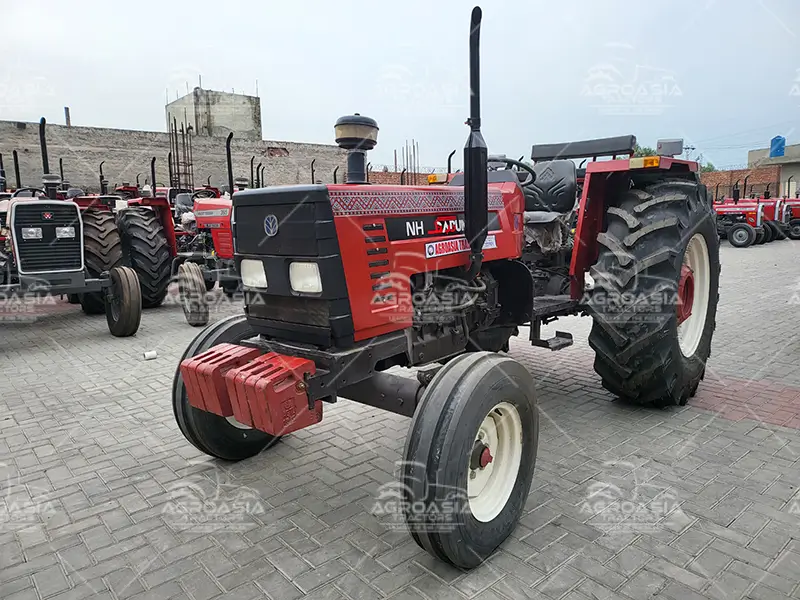

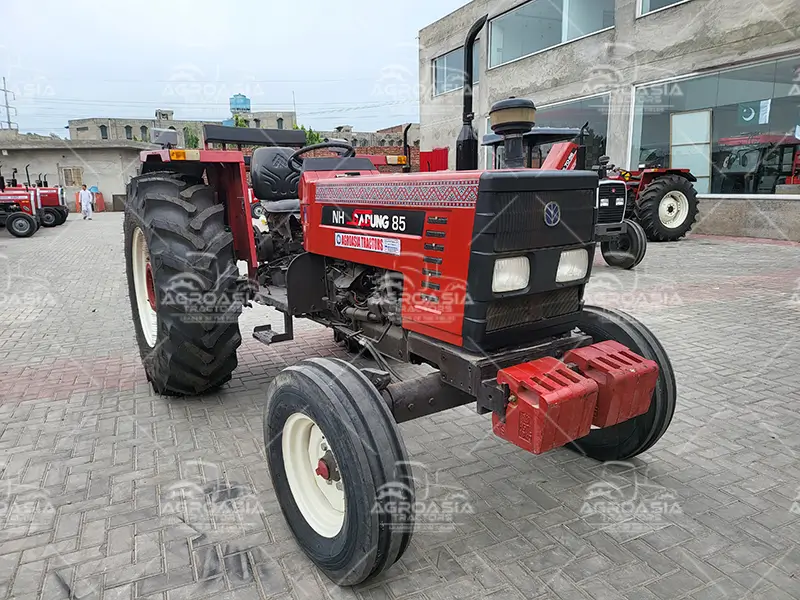

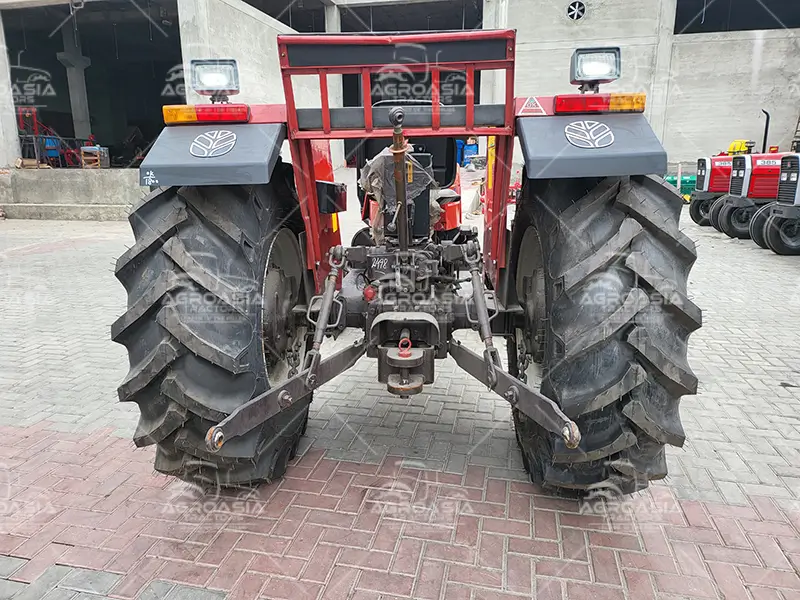

New Holland Dabang is an 85 HP 2WD agricultural tractor that can be purchased by farmers in Africa, the Middle East and the Caribbean. The NH Model’s design and dedicated 85HP power ensure its position among farming productivity. This model has a brilliant reputation for outstanding performance and flexibility. It is suitable for plows, seeding and reaping on small and medium sized farms in developing countries in Africa, the Middle East and the Caribbean.
AgroAsia Tractors’s goal is to market the New Holland Dabang tractor for sale to farmers all over the Africa and Caribbean countries and into Dubai, Abu Dhabi, Sharjah, and every corner where agriculture business flourishes. We sell New Holland Dabang Tractor at a competitive price in Africa, the Middle East and Caribbean countries for the locals and foreigners alike, most especially those from Africa, the Middle East, and the Caribbean Region. The starting price of Brand New New Holland Dabang Tractor is $12,500 USD.
| Specification | Details |
|---|---|
| ENGINE POWER | At flywheel: 85 HP |
| ENGINE | New Holland 8045.05, 4-Stroke, direct injection diesel engine, 4 Cylinders, Bore and Stroke: 104 x 115 mm, Piston Displacement: 3,908 cc, Flyweight type dynamic balancer, Compression Ratio: 17:1, Max Power at 2,600 rpm: 85 HP, Max Torque at 1,600 rpm: 29.7 kgm, Dry-type cylinder liners, Cooling system: Water, Five-row brass tube and copper fin radiator, Forced-feed lubrication system, Two power outlets for hydraulic pump on timing cover, Distributor type fuel injection pump with mechanical speed governor, Exhaust Muffler: Vertical, Five-bearing crankshaft, Oil Cooler |
| FILTERS | Air: Oil-bath with pre-cleaner, Fuel: 2 replaceable cartridges, Oil: Easy-to-change, continuous-flow cartridge |
| CLUTCH | Dual plate, dry-type with separate controls (pedal for transmission and hand lever for PTO), Diameter of plates: 11 inch, Cera Metallic Clutch Plate |
| TYRES | Front: 7.50-16, Rear: 18.4/15-30 |
| DRIVER’S SEAT | Fully upholstered, with parallelogram suspension, adjustable, foot step for ease |
| BODY | Front lifting hood, Three-side access to Engine for ease of maintenance |
| LIGHTING SYSTEM | 3-position headlights (parking, low & high beam), Blue high beam warning light on instrument panel, Adjustable headlight mounted in front grill, Indicators, parking & hazard lights |
| ELECTRICAL SYSTEM | 12 Volt starting system, 4hp (3KW) starter motor, 400 Watts alternator, 108 Ah battery, 7-pin connector for trolley, Cold Starting aid, Provision for mobile charger and MP3 |
| INSTRUMENT PANEL | Separate temperature, fuel gauge & hour meter |
| CAPACITY | Fuel tank: 65 L, Engine oil: 11.5 L, Hydraulic Transmission: 29 L, Rear Axle: 4 L each side, Air Cleaner: 1 L, Power Steering: 2 L |
| OPERATING WEIGHT | 2,865 kg |
| TRANSMISSION | Gearbox with constant-mesh gears, 8 forward and 2 reverse speeds, Synchromesh on 3rd, 4th, 7th and 8th speeds, Double control lever, Differential lock with pedal actuated and automatic disconnection, Spur gear final drives, Gearbox mounted starter safety switch |
| FRONT AXLE | Inverted U section, telescopic type, front weight 160 kg |
| TRACKS | Front (8 positions): 1,320 – 2,020 mm, Rear (8 positions): 1,320 – 2,020 mm |
| STEERING | Hydrostatic power steering, Minimum turning radius: with brakes: 3,600 mm, without brakes: 4,400 mm |
| POWER TAKE OFF | 6 spline shaft – 35 mm dia / 1 – 3/8”, Fully independent: 540 rpm at 2,160 engine rpm, High-speed DTO: 35 mm dia / 1 – 3/8” |
| HYDRAULIC LIFT | Draft and position control, Draft control through top link, Gear type pump driven from engine crankshaft, Pump capacity: 26.7 l/min, Relief valve opening pressure: 190 kg/cm², 3-point linkage Cat I – II, Max Lifting capacity: 2,150 kg |
| BRAKES | Oil-immersed disc brakes, Parking: manual lever on right side of operator |
| DIMENSIONS | Wheelbase: 2,070 mm, Overall length: 3,330 mm, Height to top of hood: 1,402 mm, Height to steering wheel: 1,675 mm, Front track (8 positions): from 1,320 to 2,020 mm, Rear track (8 positions): from 1,320 to 2,020 mm, Ground clearance under front axle: 500 mm |
| ADDITIONAL | Rear seat, Front and Rear Weights, Towing Hook |
| OPTIONAL | Canopy, Swinging Draw bar, DTO pump applications, Creeper gear |
Answer: Horsepower of New Holland Dabang tractor is 85 HP at the flywheel.
Answer: Tractor is equipped with a New Holland 8045.05 4-stroke, direct injection diesel engine.
Answer: Engine has 4 cylinders.
Answer: Bore and stroke of the engine are 104 x 115 mm.
Answer: Maximum power of the engine at 2,600 rpm is 85 HP, and the maximum torque at 1,600 rpm is 29.7 kgm.
Answer: Engine has a water-cooling system with a five-row, brass tube, and copper fin radiator.
Answer: Tractor has a dual plate, dry-type clutch with separate controls for transmission and PTO.
Answer: Front tires are 7.50-16, and the rear tires are 18.4/15-30.
Answer: Operating weight of Tractor is 2865kg.
Answer: The gearbox offers 8 forward and 2 reverse speeds.
Answer: Tractor has Hydrostatic power steering.
Answer: Fuel tank capacity is 65 liters.
Answer: Maximum lifting capacity of the hydraulic lift is 2,150 kg.
Answer: Tractor has oil-immersed disc brakes.
Answer: Dimensions of Tractor are:
Answer: Canopy, Front weight, Pintle hook, Set of Filters, Standard Tool Kit, Anti Rust Paint
