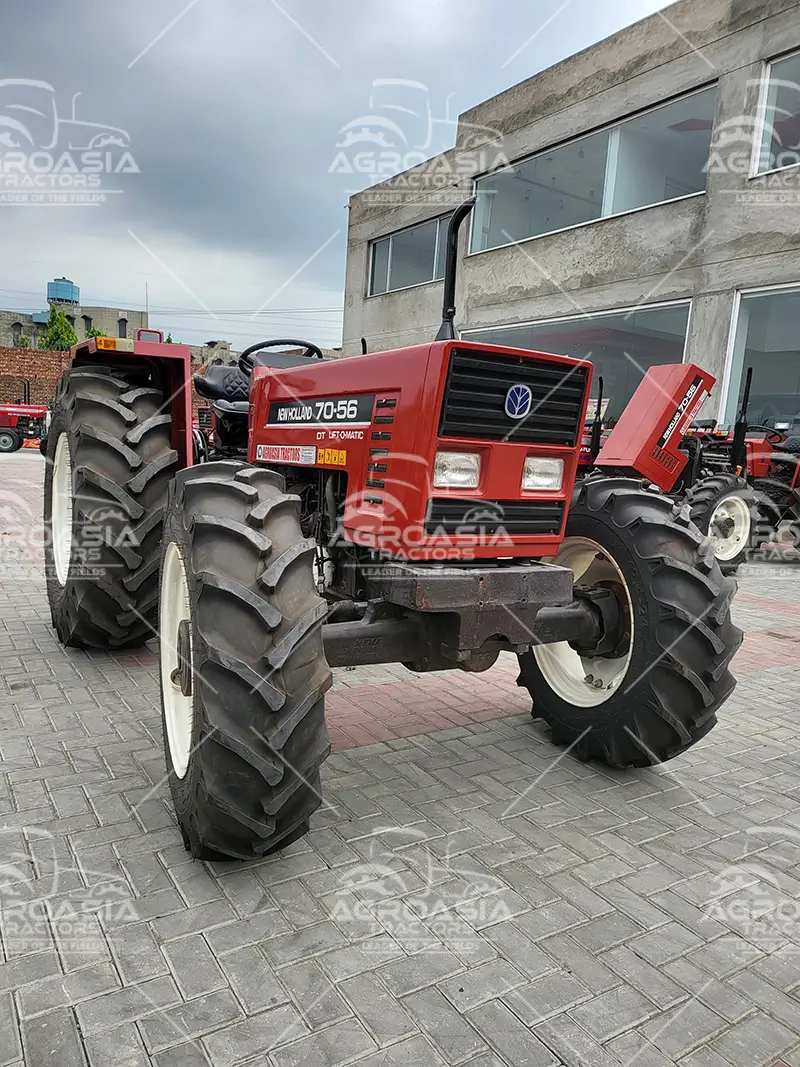

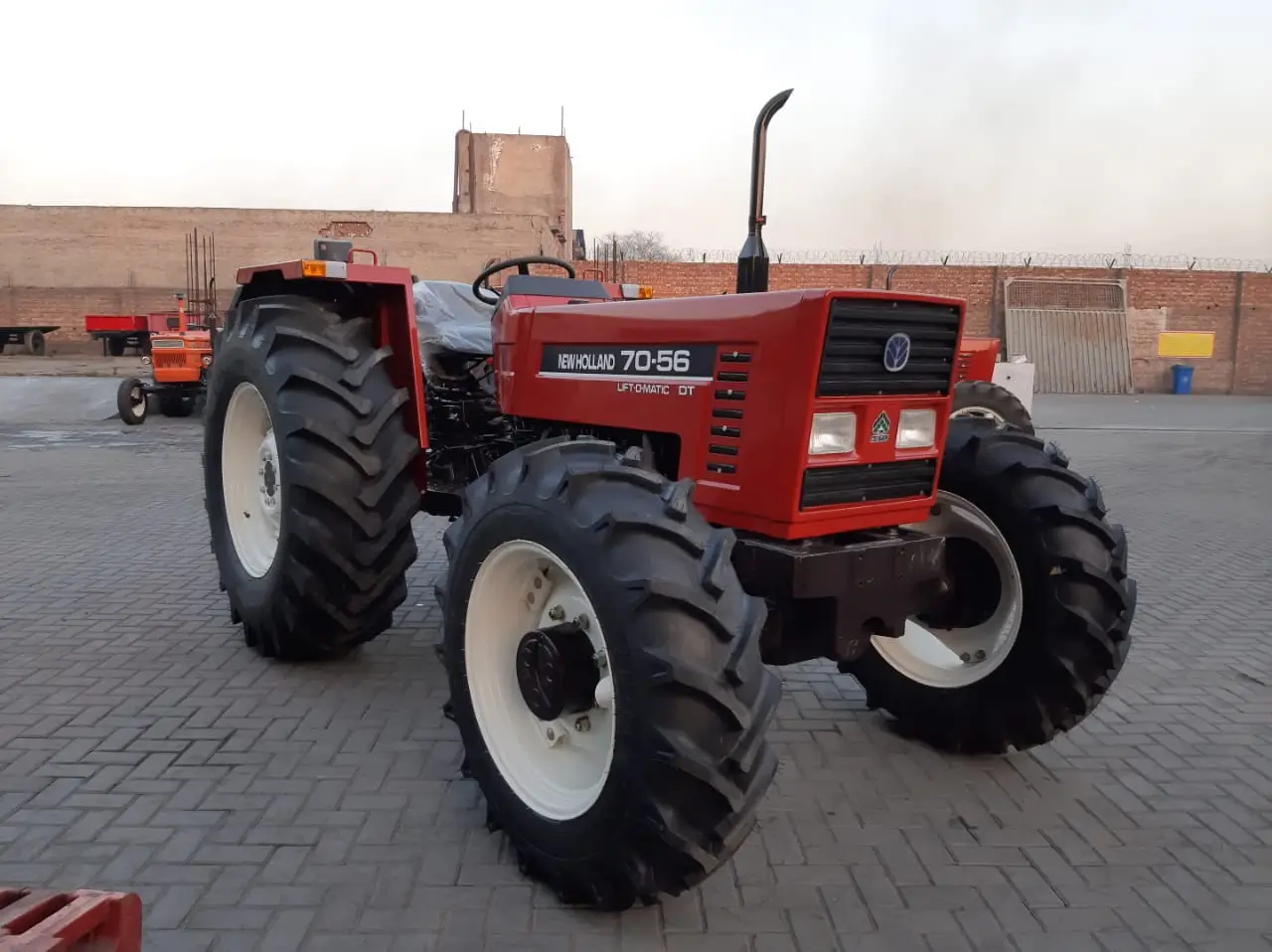

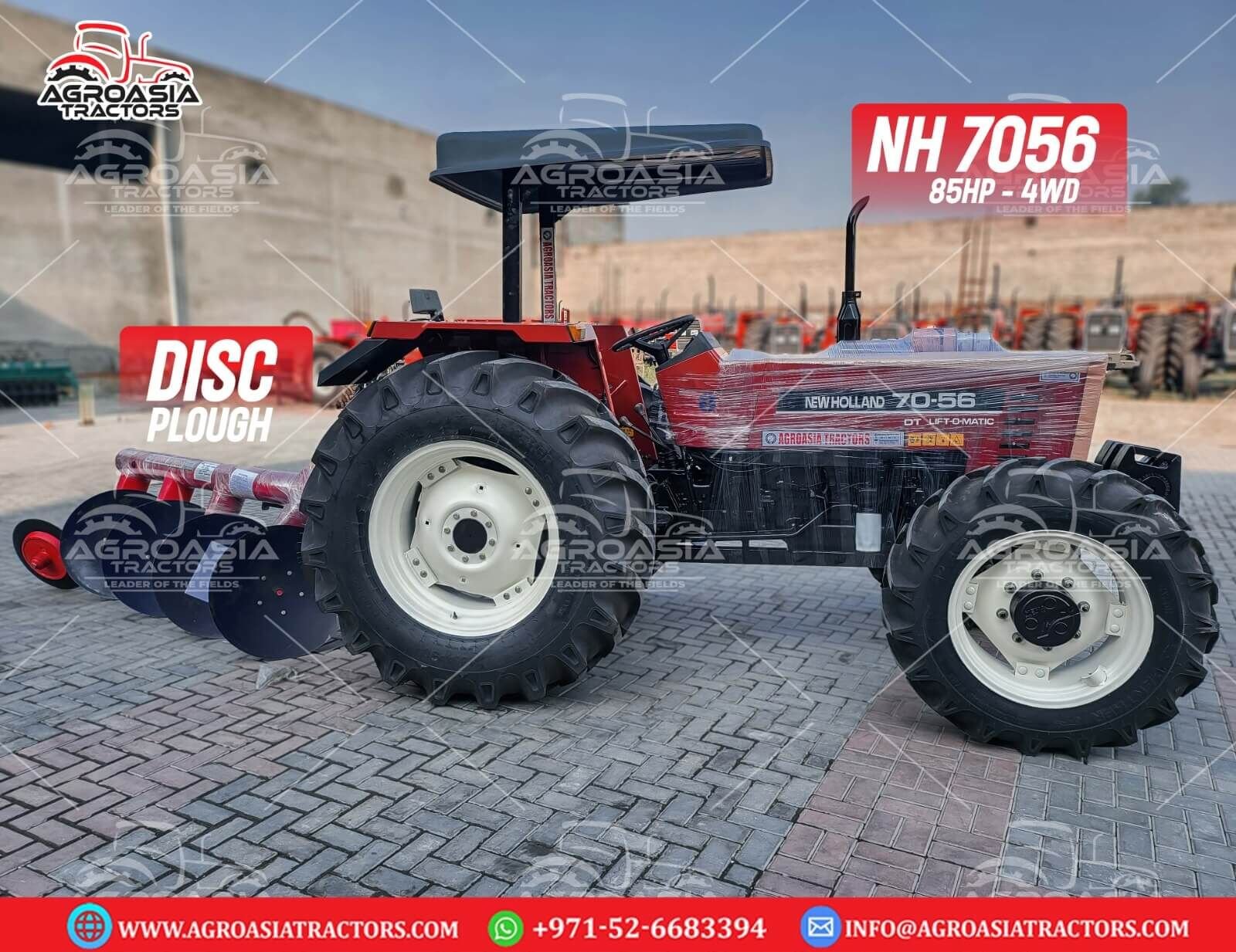

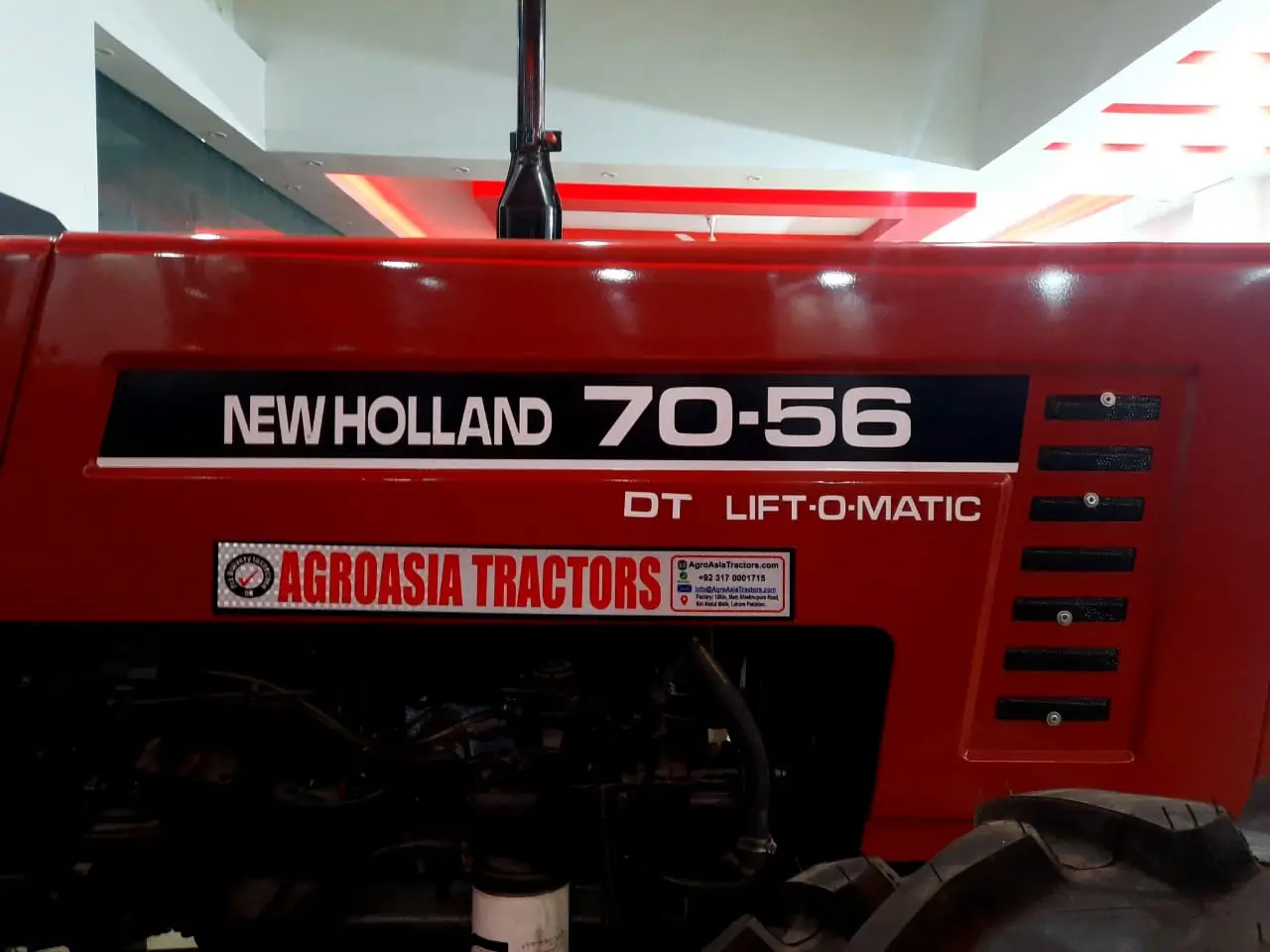

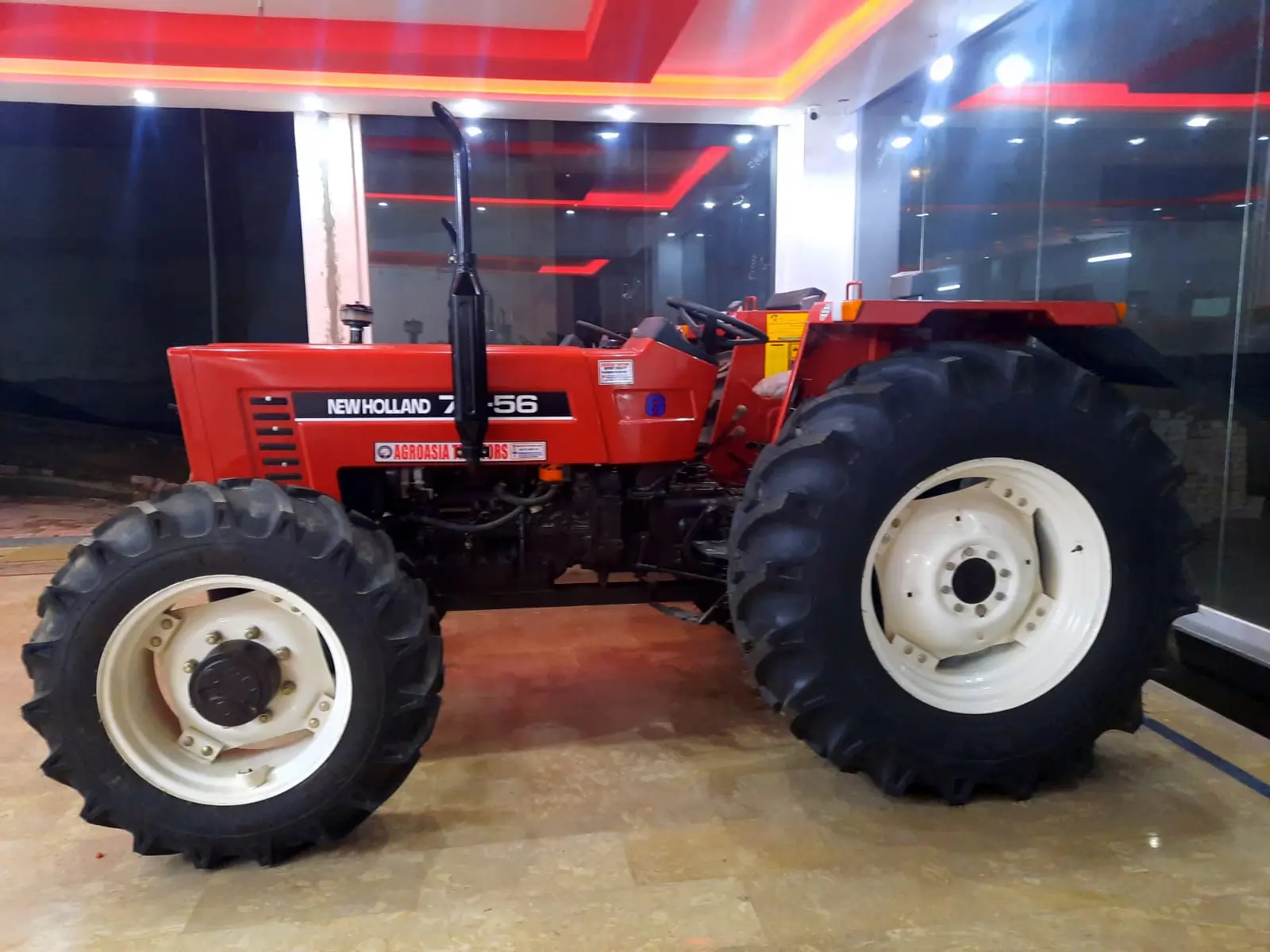

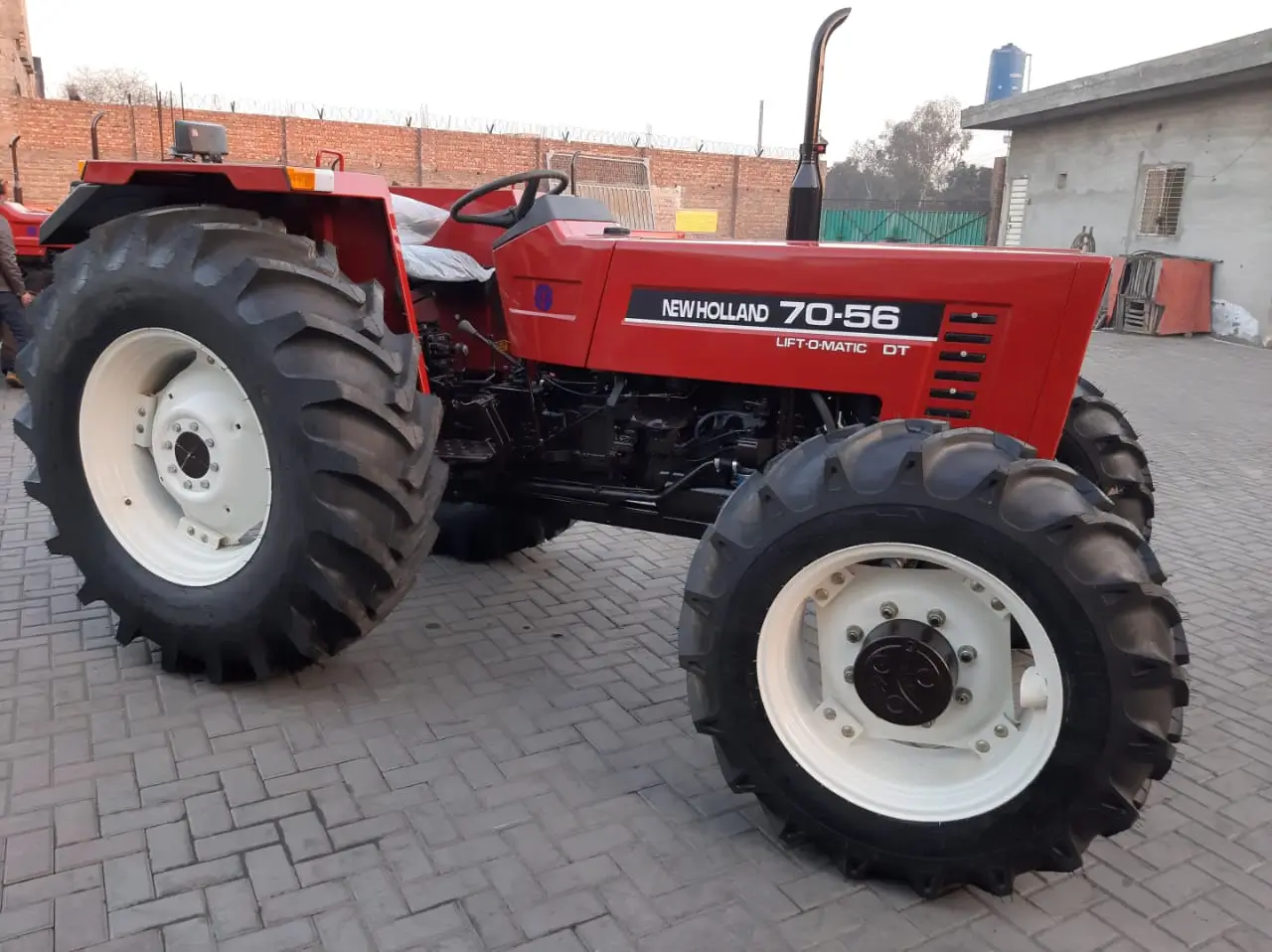

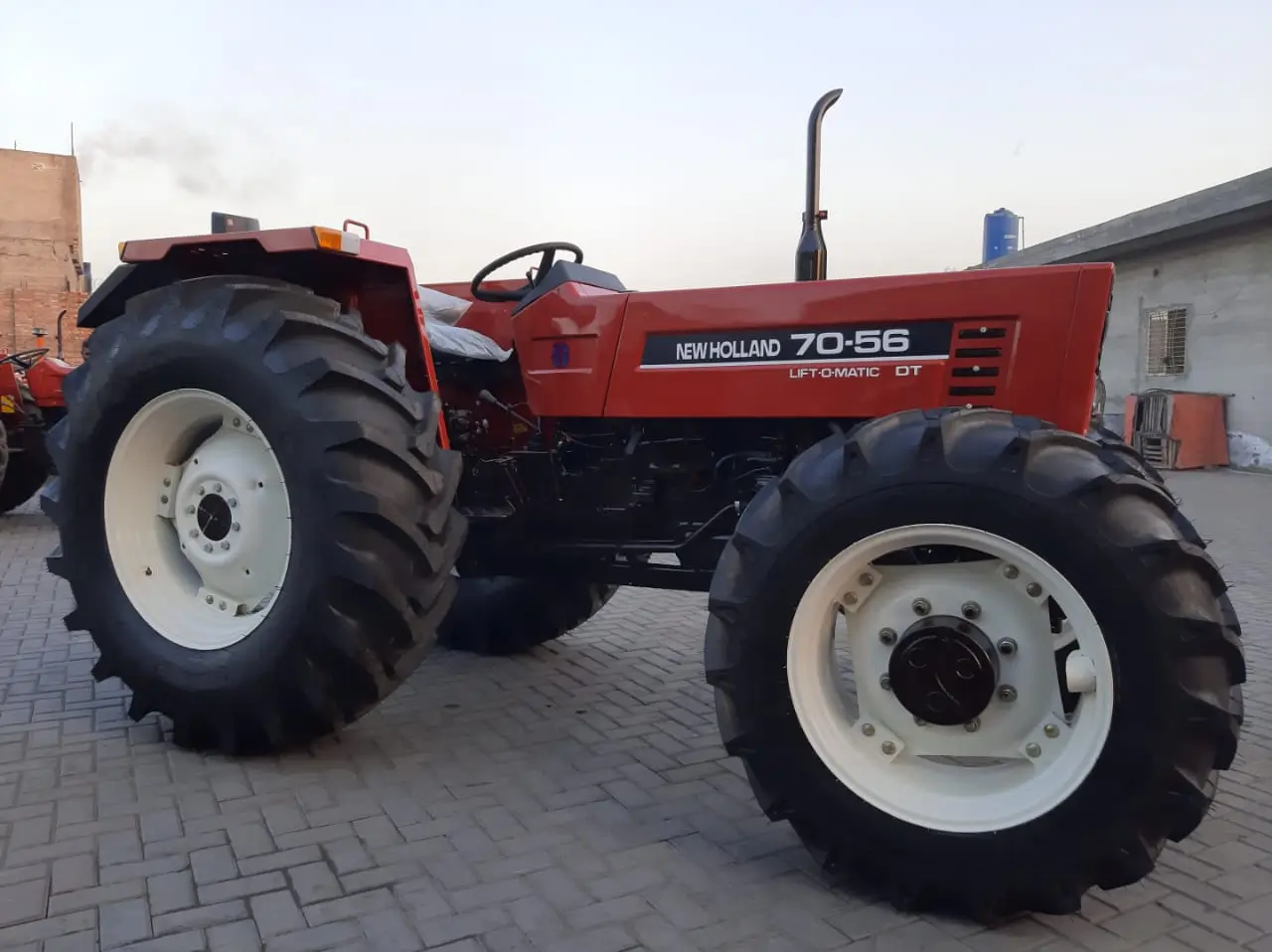

AgroAsia Tractors introduces the newest New Holland Tractors 7056 models for sale in Africa, Middle East and Caribbean countries, addressing the concerns of small and medium-sized farms requirements within the region. The NH 7056 Tractor thanks to its strong build and diverse capabilities is going to change the agricultural practices in Africa, Middle East and Caribbean regions.
When the subject of farm equipment investments comes up, the concern of getting the best value for your money is very important. Thus, AgroAsia Tractors provides New Holland 7056 Tractor models at the best prices where this tractors are very popular in Africa, Middle East and Caribbean countries. New Holland 7056 has an introductory price of $16,700 USD. This efficient tractor will be made available to even the smallest farmers in Sharjah, Abu Dhabi, and outlying areas where agriculture is prevalent.
ENGINE |
|
| New Holland 8045.05, 4-Stroke, direct injection diesel engine | |
| Number of cylinder: | 4 |
| Bore and stroke: | 104x 115 mm |
| Piston Displacement: | 3,908 cc |
| Flyweight type dynamic balancer. Compression ratio: | 17:01 |
| Max. Power at 2,600 rpm: | 85 HP |
| Max. Torque at 1,600 rpm: | 29.7 kgm |
| Cooling system: | Water |
| Exhaust muffler: | vertical |
| Dry-type cylinder liners. Oil Cooler Five-row, brass tube and copper fin radiator Forced-feed lubrication system. Two power outlets for hydraulic pump on timing cover. Distributor type fuel injection pump with mechanical speed governor. Five bearing crankshaft. |
|
FILTERS |
|
| Air: | Oil-bath with pre-cleaner |

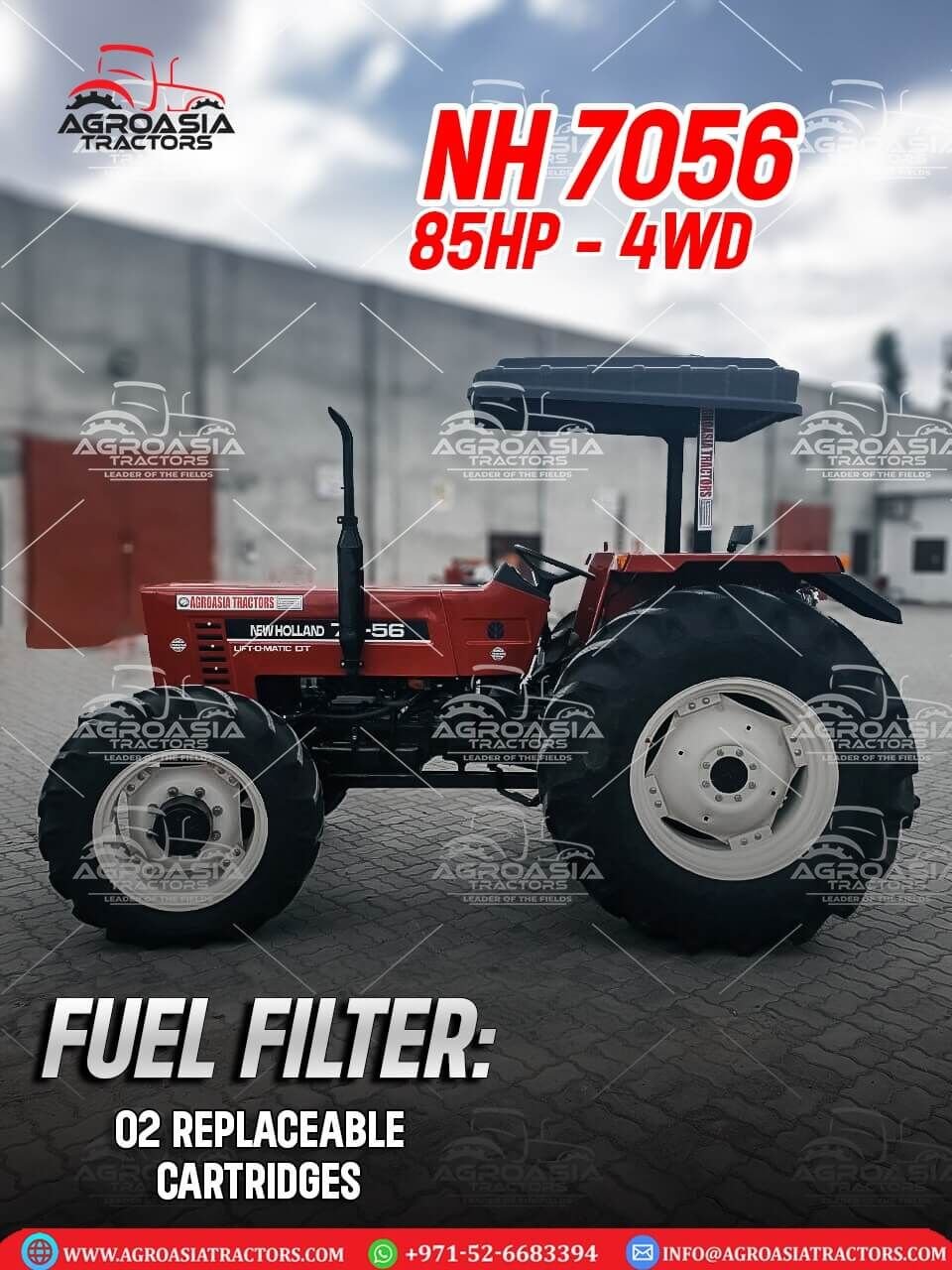

| Fuel: | 2 replaceable cartridges |
| Oil: | Easy-to-change, continuous-flow cartridge |
CLUTCH |
|
| Dual plate, dry-type with separate controls (pedal for transmission and hand lever for PTO) | |
| Diameter of plates: | 11 inch |
| Plates facing of asbestos compound. | |
TYRES |
|
| Front: | 7.50-16 |
| Rear: | 18.4/15-30 |
TRANSMISSION |
|

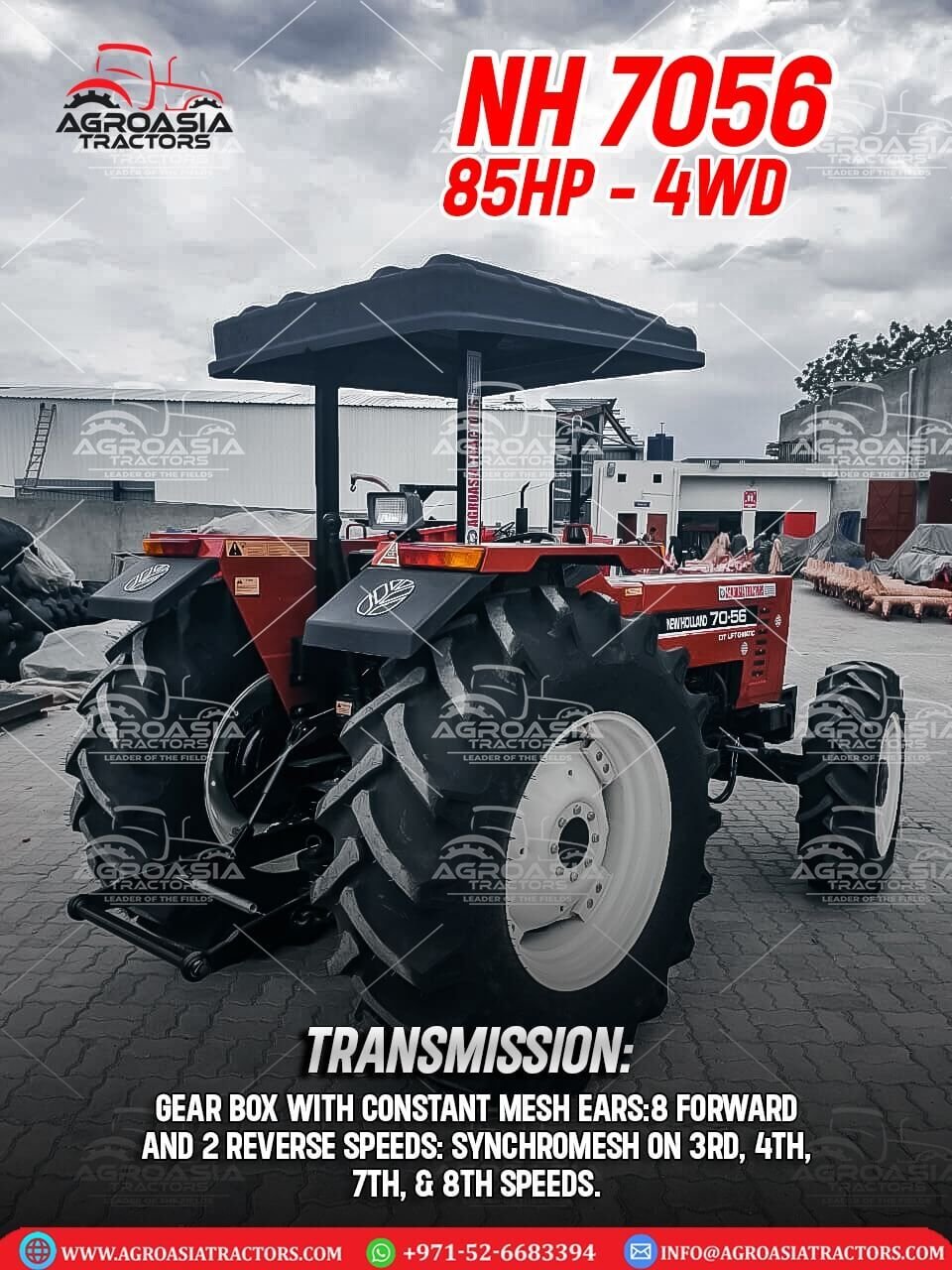

| Gearbox with constant-mesh gears: 8 forward and 2 reverse speeds. Synchromesh on 3rd, 4th, 7th, and 8th speeds Double control lever Differential lock with pedal actuated and automatic disconnection. Spur gear final drives. Gear Box mounted starter safety switch. |
|
FRONT AXLE |
|
| Inverted U section, telescopic type, front weight 120 kg. | |
STEERING |
|
| Hydro assisted with independent circuit. Minimum turning radius: | |
| with brakes: | 3,400 mm |
| without brakes: | 3,700 mm |
POWER TAKE OFF (PTO) |
|
| 6 spline shaft – 35 mm dia/1-1 Fully independent: 540 rpm at 2,160 engine rpm High-speed DTO(*) 35 mm dia / 1-1 same speed as engine. (*) for application of high-speed implements. |
|
HYDRAULIC LIFT |
|
| With draft and position control, | |
| Draft control through top link. | |
| Gear type pump driven from engine crankshaft. | |
| Pump capacity (at 2,400 engine rpm): 26.7 l/min | Relief valve opening pressure: 190 kg/cm² |
| 3-point linkage Cat I – II | |
| Sway chains. | |
| Lift lever lock bracket. | |
| Max. Lifting capacity: | 2,150 kg |
DRIVER’S SEAT |
|
| Fully upholstered, with parallelogram suspension, adjustable, foot step for ease. | |
| BODY | |
| Hood with side-hinged cover for engine inspection. Front grill is easily removable for quick access to air cleaner and battery. | |
LIGHTING SYSTEM |
|
| 3-position headlights: (parking, low & high beam). Blue high beam warning light on instrument panel. Adjustable headlight mounted in the front grill, indicator, parking, and hazard lights. |
|
ELECTRICAL SYSTEM |
|
| 12 Volt starting system, 4hp (3kw) starter motor, 400 watts alternator, 108 ah battery. | |
INSTRUMENT PANEL |
|
| Separate temperature, fuel gauge & hour meter. | |
CAPACITIES |
|
| Fuel tank: | 54 L |
| Engine oil: | 11.5 L |
| Hydraulic Transmission: Rear Axle: | 18L |
| Air Cleaner: | 4+4 L at both sides |
| Power Steering: | 1.5 L |
BRAKES |
|
| Independent, mechanically actuated, internally mounted, dry disk-type brakes operated by 2 pedals. | |
Answer: New Holland 7056 Tractor is equipped with a New Holland 8045.05, 4-Stroke, direct injection diesel engine.
Answer: Engine of New Holland 7056 Tractor has 4 cylinders.
Answer: Bore and stroke dimensions of the engine are 104 x 115 mm.
Answer: Engine produces a maximum power of 85 HP at 2,600 rpm and a maximum torque of 29.7 kgm at 1,600 rpm.
Answer: Engine is water-cooled.
Answer: New Holland 7056 Tractor has a dual plate, dry-type clutch with separate controls (pedal for transmission and hand lever for PTO).
Answer: The transmission features 8 forward and 2 reverse speeds with constant-mesh gears.
Answer: PTO operates at 540 rpm, synchronized with the engine speed of 2,160 rpm.
Answer: Maximum lift capacity of the hydraulic lift system is 2,150 kg.
Answer: Tractor features a hydro assisted steering system with an independent circuit and a minimum turning radius of 3,400 mm with brakes and 3,700 mm without brakes.
Answer: With 7.50-16 and 18.4/15-30 tyres, the dimensions include a wheelbase of 2,070 mm, an overall length of 3,330 mm, a height to the top of the hood of 1,460 mm, and a height to the steering wheel of 1,610 mm. The front track ranges from 1,320 to 2,020 mm, and the rear track ranges from 1,320 to 2,020 mm.
Answer: Fuel tank capacity is 54 L, engine oil capacity is 11.5 L, hydraulic transmission and rear axle capacity is 18 L, air cleaner capacity is 4+4 L on both sides, and power steering fluid capacity is 15 L.
