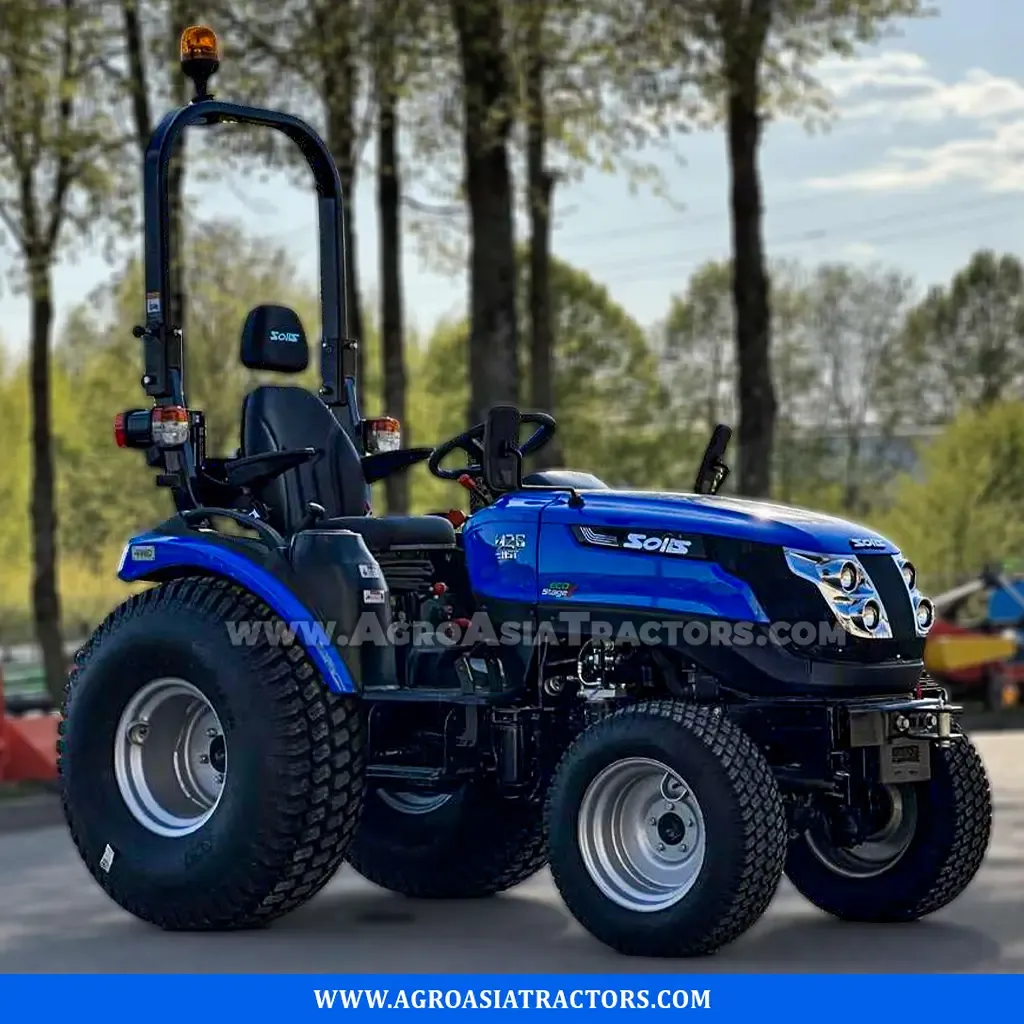

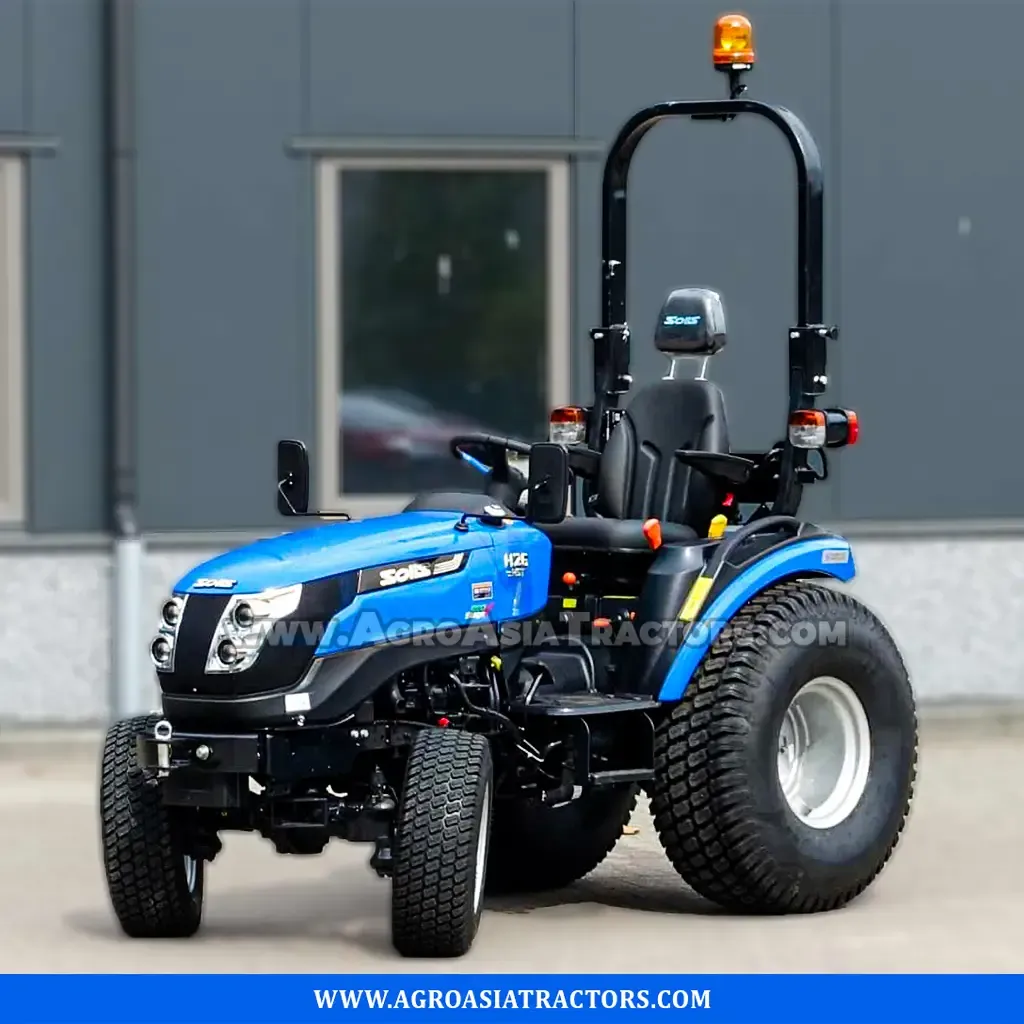

Meet the Solis H26, a compact powerhouse built to simplify your agricultural tasks without sacrificing performance. Its 26 HP Mitsubishi 3-cylinder engine exudes raw power while maintaining exceptional fuel efficiency, supporting everything from soil preparation to crop care.
Equipped with 4WD hydrostatic transmission and a ground clearance of 215 mm, it handles challenging terrains with ease, ensuring maximum traction and stability. The advanced hydraulic system, boasting a selectable 600 to 775 kg lifting capacity, is perfect for plowing, cultivating, or hauling, efficiently managing even the most demanding implements.
For small and medium-scale farms, the independent PTO with a steady 540 RPM output powers attachments like rotavators and seeders, bringing versatility to your fieldwork. The ergonomically designed operator seat ensures all-day comfort, while twin projector headlamps illuminate evening tasks effortlessly.
Compact, durable, and sleek, the Solis H26 strikes the perfect balance for smaller farming operations in Africa, the Middle East, and beyond. Add advanced technology and premium performance to your farm today.
ENGINE | |
---|---|
Engine Type | Mitsubishi 3-Cylinder Diesel Engine |
HP Category | 26 |
No. of Cylinders | 3 |
Aspiration | Naturally |
Cubic Capacity (cc) | 1319 |
Rated RPM (+/-25mm) | 2500 |
Air Cleaner | Dry with Clogging Sensor |
Cold Start | Standard |
Max Torque (Nm) | 76.3 |
Exhaust | Silencer in the Engine Compartment, Downward Discharge |
TRANSMISSION | |
Drive | 4 WD |
Clutch | Wet Type Clutch for PTO |
Gearbox | Hydrostatic |
Front Axle | Heavy Duty Axle |
Transmission | HST (2- Stufen Hydrostat) |
SPEED FORWARD | |
Maximum Speed (Km/Hr) | 19.6@2660 |
Minimum Speed (Km/Hr) | 3.18 at low idle 900 erpm, 8.83@rated erpm |
BRAKES | |
Brakes | Oil Immersed |
Type of Actuation | Hydrostatic |
Parking Brake | Independent |
PTO | |
PTO (RPM) | Mid PTO- 2100 RPM, Rear 540 |
PTO (Actuation) | Electro Hydraulic Operated / Mechanical Selector Lever |
HYDRAULICS | |
3 Point Linkage | Cat 1-N |
Stay Bars | Anchor Chain |
Additional Hydraulic Circuit | 1 DA (ROPS) / 3DA (Cabin) |
Hydraulic Lifting Capacity (Kg) | 775 Kg |
Lift Rods | Standard |
Litres Per Minute (LPM) | 16.5 |
TYRES (FRONT/REAR) | |
Front | 6.00-12 |
Rear | 8.30-20 |
DIMENSION & WEIGHT(+/-5%) | |
Weight (Kg) | 1235 |
Wheel Base (mm) | 1570 |
Total Length (mm) | 2895 |
Total Width (mm) | 1290 (max)-1215 (min) |
Height (mm) up to ROPS | 2325 |
Min Ground Clearance (mm) | 215 |
Front Track (mm) | 885 |
Rear Track (mm) | 960 |
